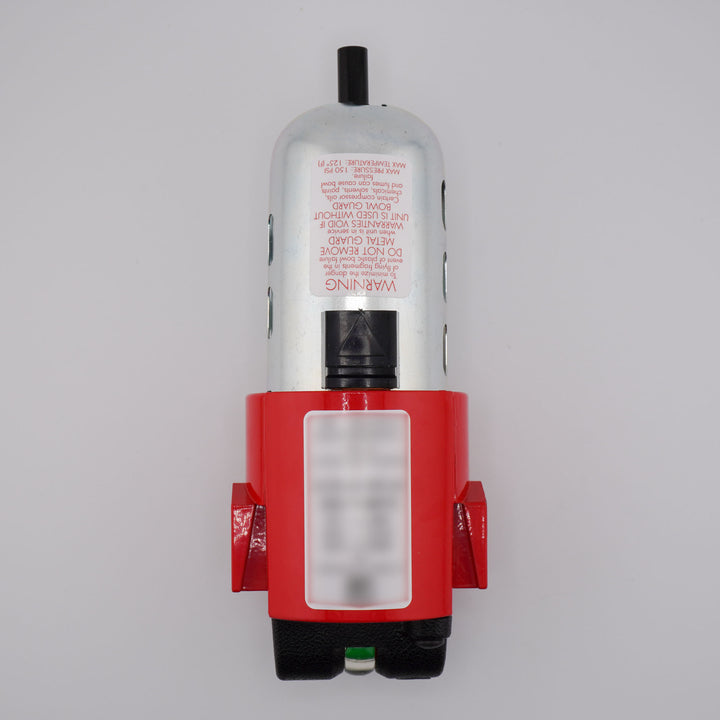

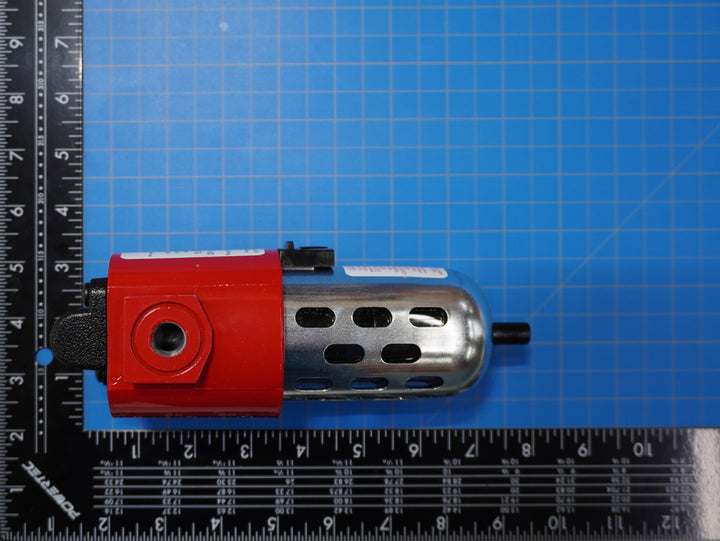

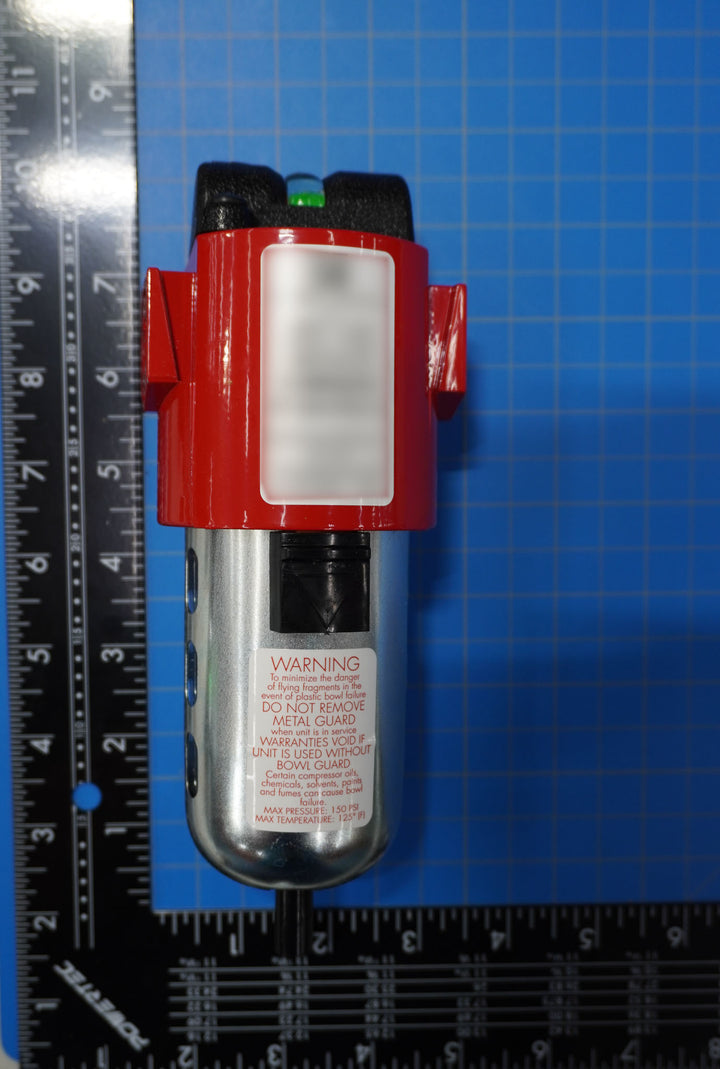

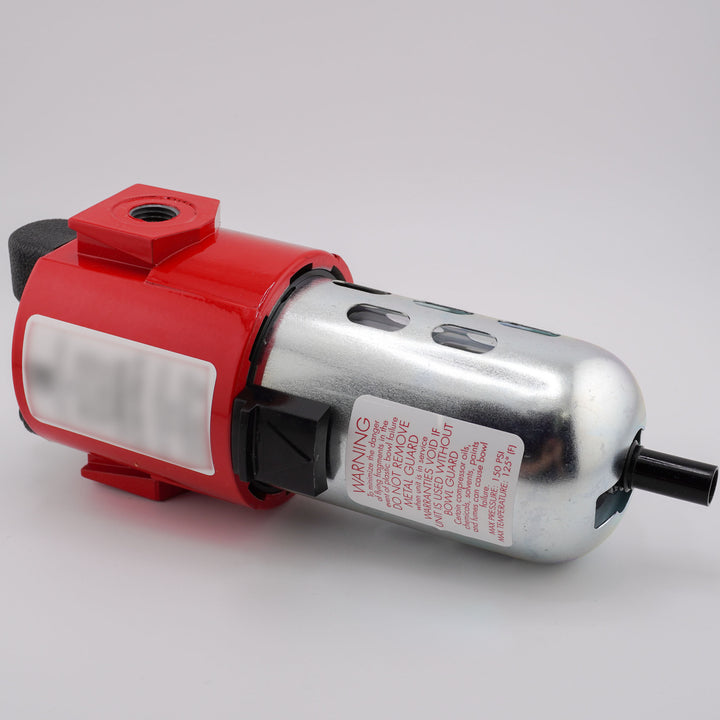

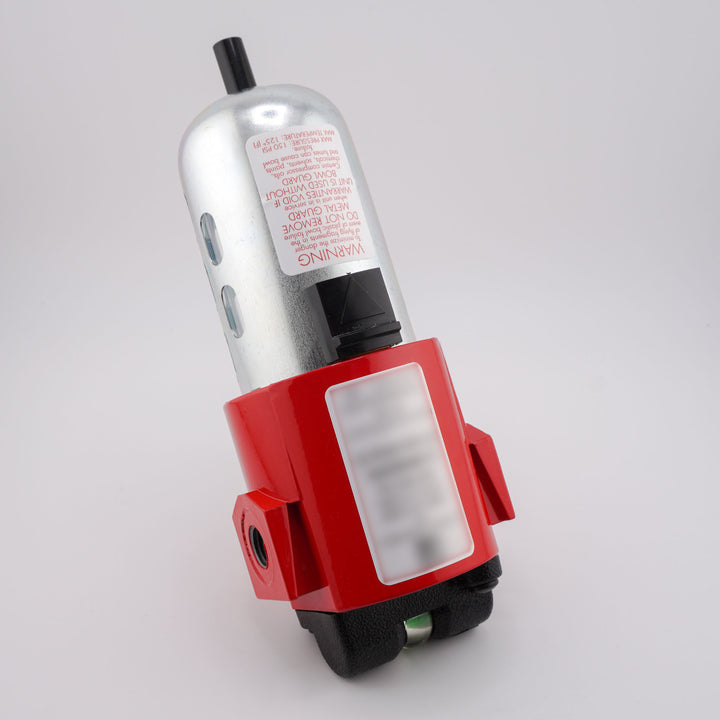

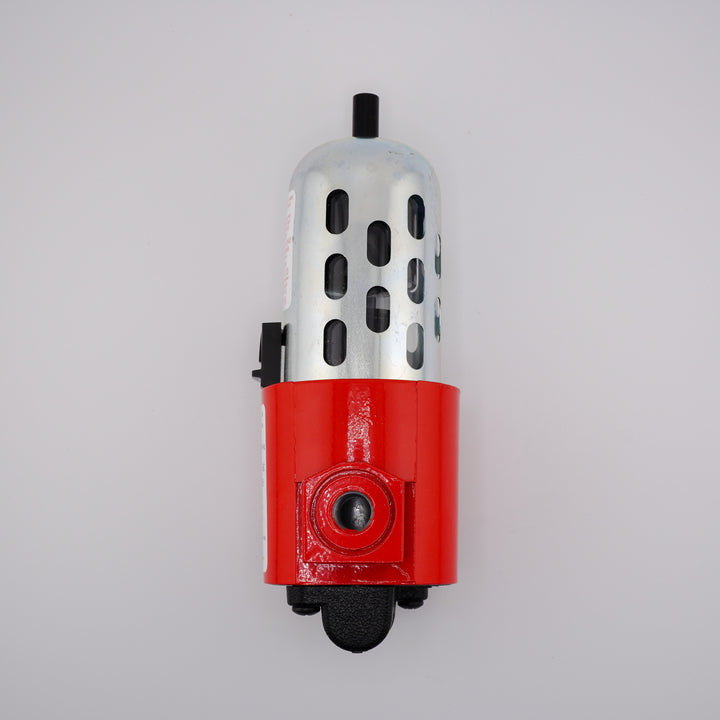

Filter - Dryer (SP7243-01)

Filter Dryer – 1/4" NPT, 20 SCFM. Compact point-of-use air dryer removes water, oil, and particulates from compressed air to protect sensitive pneumatic equipment.

Material# ZSP7243-01
Catalog # SP7243-01

Product Description

Compact Filter Dryer for Point-of-Use Applications
Ideal for use at air tool drops, valve stations, or packaging equipment—installs directly into the air line to eliminate water and fine particulates before they reach downstream components.
Two-Stage Filtration Performance
Features a stainless steel mesh pre-filter and polyester/cotton media element for 1-micron filtration—achieves ISO Class 2 air quality for reliable protection.
Integrated Float Drain for Continuous Operation
Built-in automatic float drain expels accumulated water from the housing—keeps airflow clean and dry without manual drainage.

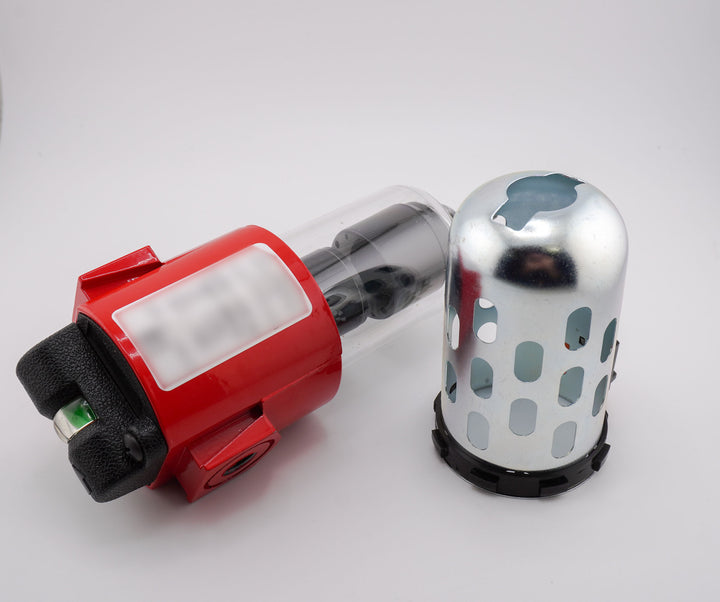

Rugged, Transparent Housing with Metal Guard
Polycarbonate bowl with metal shield provides visibility and safety—lets operators easily monitor element condition and fluid buildup.
OEM-Trusted
With 1/4" NPT ports and a 20 SCFM flow rating at 100 psi, this Filter dryer integrates seamlessly into rotary vacuum packaging systems and other high-performance pneumatic environments.

Features

Reliable Water Removal – Protects sensitive valves, solenoids, and actuators from moisture-related damage.
Cleaner, Drier Air – Improves equipment performance, seal integrity, and reduces maintenance frequency.
Drop-In Compatibility – 1/4" ports and compact design make installation fast and flexible at any workstation.

Maintenance Tips

Inspect the filter bowl for condensation or discoloration regularly.
Replace the internal element when pressure drop is noticeable or during routine service.
Ensure the float drain remains unblocked to avoid moisture buildup.
Keep bowl shield intact for safe operation in high-traffic areas.

Specifications

NOTE: These dimensions represent typical measurements and may not account for certain variations like rolled or packed items - if exact sizing is critical, please contact us.

Length: 8 in
Width: 3 in
Height: 2.5 in
