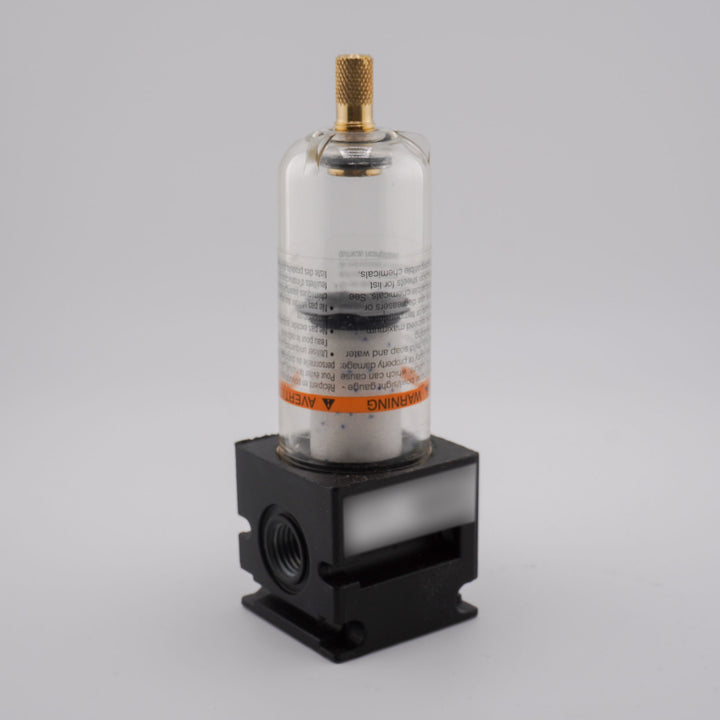

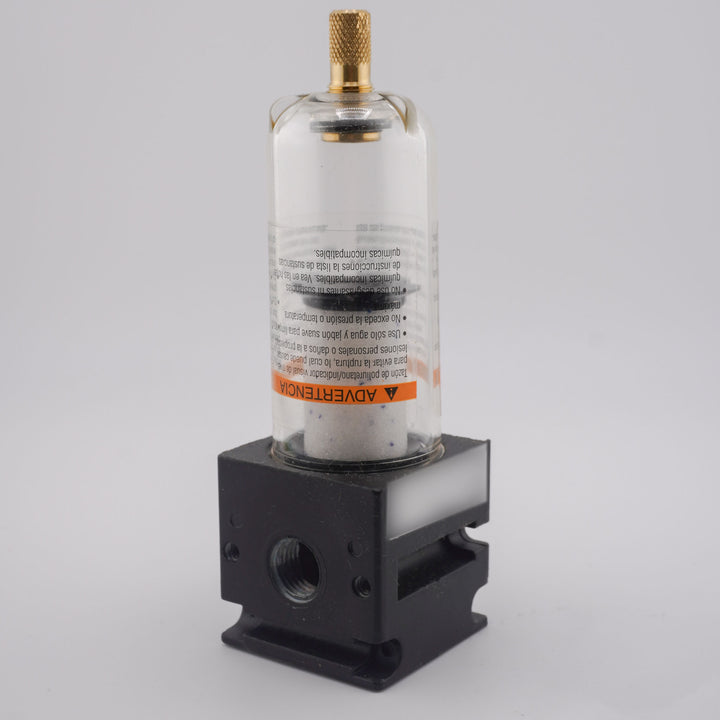

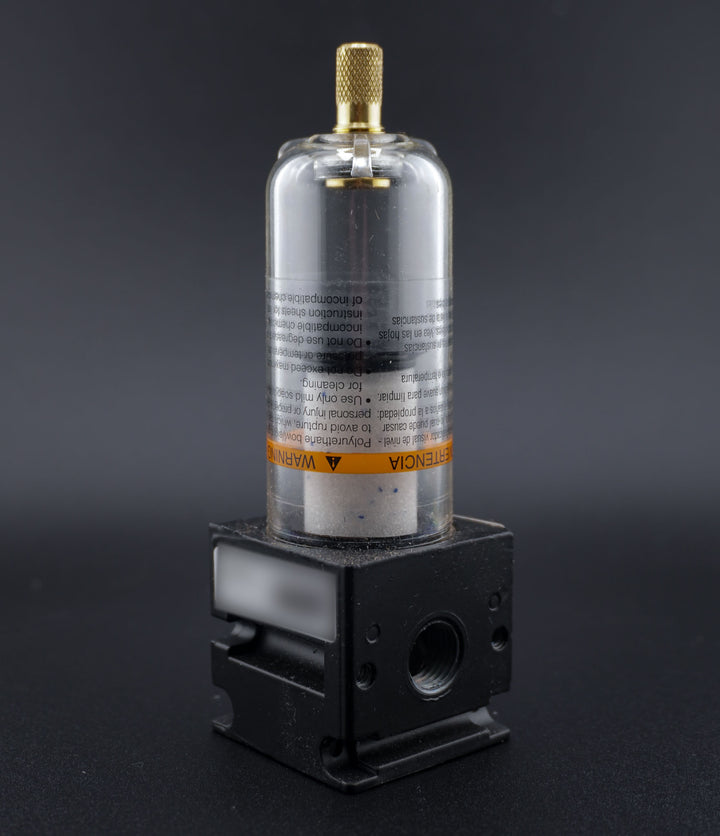

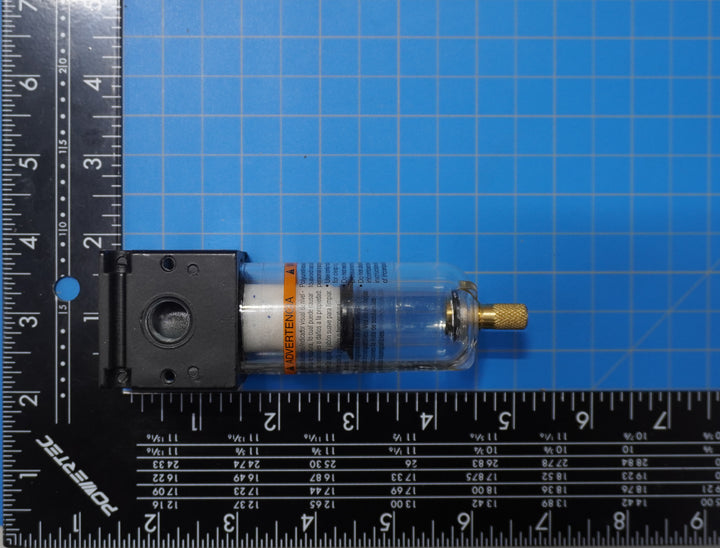

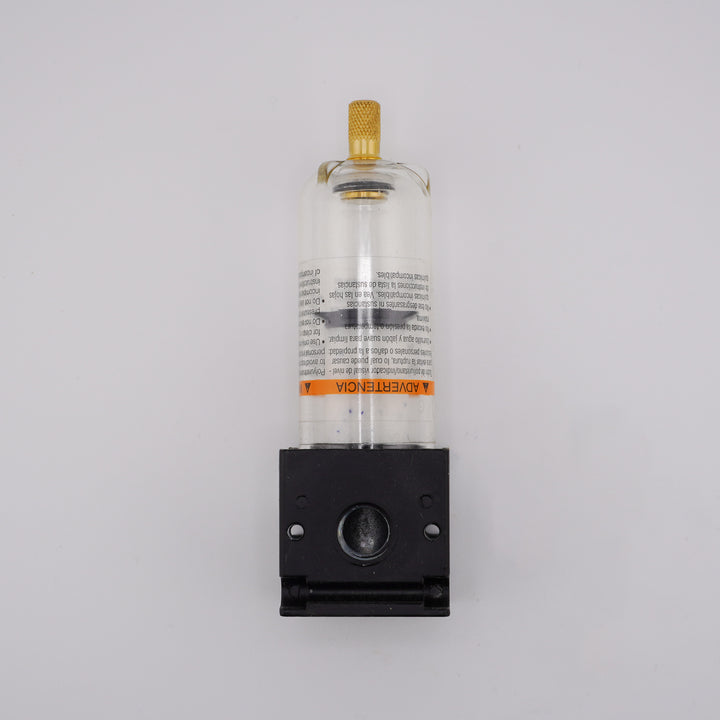

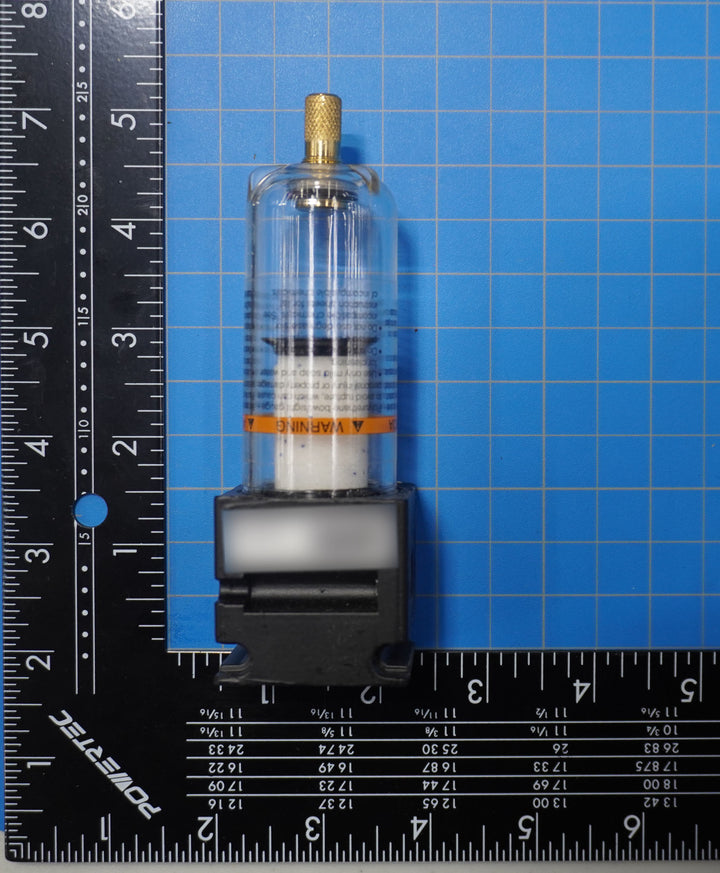

Filter (SP6423-01)

OEM coalescing filter for rotary vacuum packaging systems. Removes oil mist, submicron particles, and aerosols from compressed air to protect precision pneumatic components.

Material# ZSP6423-01
Catalog # SP6423-01

Product Description

OEM Coalescing Filter for CRYOVAC® Rotary Vacuum Equipment
Designed for CRYOVAC® rotary systems—used to remove fine oil vapor and micro-contaminants from compressed air after standard filtration.
Protects High-Sensitivity Pneumatic Components
Critical for solenoids, regulators, and diaphragm controls—helps maintain reliable actuation and prevents contamination buildup in precision equipment.
Fine Filtration Down to 0.01 Microns
Captures oil mist, water aerosols, and particulates that pass through standard filters—essential for maintaining clean, dry air in food-safe environments.
Durable Construction with Visual Inspection Window
Includes transparent or semi-transparent bowl for at-a-glance condition checks; corrosion-resistant housing built for washdown areas.
Installs After Main Air Filter in FRL Systems
Easily integrates into existing filter-regulator-lubricator setups to provide final stage protection for sensitive pneumatic circuits.

Features

Submicron Filtration Performance – Removes ultra-fine oil and water mist to prevent pneumatic failure and improve equipment life.
OEM Fit & Flow Capacity – Built to match air volume and pressure requirements of high-cycle rotary vacuum systems.
Hygiene-Ready Housing – Compatible with food-processing sanitation protocols and low-pressure washdowns.

Maintenance Tips

Replace filter element according to manufacturer specs or when pressure drop is detected across the unit.
Drain collected mist using manual or auto-drain function as needed.
Always install after standard air filter for optimal performance.
Do not wash or reuse filter elements—use only OEM-specified replacements.

Specifications

NOTE: These dimensions represent typical measurements and may not account for certain variations like rolled or packed items - if exact sizing is critical, please contact us.

Length: 5 in
Width: 1.5 in
Height: 1.5 in
